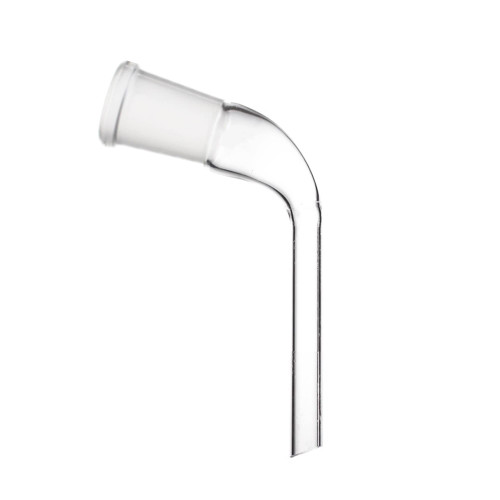

Adapter Distillation 105°, socket 14/23

Adapter Distillation 105°, Socket 14/23

You know that sinking feeling when your distillate condenses halfway up the adapter instead of reaching your collection flask? Poor vapor pathway geometry causes that. A 105° distillation adapter with 14/23 socket fixes this through deliberate angular design—the bend maintains vapor momentum while preventing backflow that kills yield.

Labs running fractional distillations need every molecule to reach the receiver, not decorate the glassware walls. I've watched researchers fight 90° adapters during vacuum work, constantly adjusting heat to compensate for turbulent vapor flow. Switch to 105° geometry and suddenly everything behaves predictably.

Preventing Product Loss with Properly Angled Distillation Pathways

That 105° bend creates what fluid dynamicists call an optimal turning radius for vapor streams. Too sharp an angle generates turbulence that slows vapor velocity, causing premature condensation right at the bend. Too gentle and you're wasting bench space while creating unnecessary surface area for holdup.

When purifying temperature-sensitive compounds, vapor pathway efficiency becomes critical. Pharmaceutical labs isolating intermediates at reduced pressure can't afford losses. The angle provides enough directional change to route vapors away from your boiling flask while maintaining sufficient momentum to prevent condensation before reaching your condenser.

How 105° Geometry Improves Condensate Flow

• Vapor molecules need momentum—this angle maintains velocity through the turn without creating stagnation zones where cooling occurs
• Organic synthesis labs running solvent recovery systems process liters of acetone or dichloromethane where every percentage point of recovery matters economically
• Compare this to arbitrary-angle adapters that create dead spaces where vapors cool and drip back toward your flask
• Natural product isolation groups appreciate this configuration because complex mixtures require precise temperature control during fractional distillation
• The geometry helps during short-path distillations with viscous materials by maintaining laminar flow and preventing holdup

Borosilicate 3.3 glass handles thermal shock without the cracking issues you get with cheaper materials. Operational temperatures up to 500°C work fine. The thermal expansion coefficient of 3.3 × 10⁻⁶ K⁻¹ means routine heating and cooling cycles won't stress the joints. Wall thickness stays uniform through that 105° curve—budget adapters often have thin spots at bends that fail under vacuum or thermal stress.

Socket 14/23 Integration with Standard Distillation Kits

Joint sizing determines setup compatibility. That 14/23 specification means 14mm inner diameter with 23mm ground glass engagement length—this size dominates small to medium-scale work from 50mL round-bottoms up to 500mL flasks.

The female socket receives the male joint from your distillation flask, creating a vapor-tight seal through precision-ground surfaces. Unlike tapered joints that require perfect alignment, standard ground glass tolerates slight misalignment while maintaining seal integrity.

• Labs running multiple simultaneous distillations need this standardization—swap components between setups without compatibility headaches
• Apply thin high-vacuum grease for extended runs or reduced pressure work
• Ground glass alone seals adequately for atmospheric distillations, but grease prevents frozen joints during long reflux operations
• Scaling up to 1L or 2L flasks requires moving to 29/32 joints—check the adapter vacuum/inert, gas, 90 degrees, cone 29/32 for larger apparatus

Compatibility note: The adapter cone 14/23, free tube length 100mm works as a straight extension when you need extra distance between components but don't require the 105° angle. I keep both configurations in my glassware drawer because some setups need the bend, others need straight vertical alignment for receiver positioning.

Eliminating Backflow in Vacuum Distillation Applications

Setup geometry determines whether you collect 95% or 75% of theoretical yield. Position this adapter so gravity assists condensate flow toward your receiver—sounds obvious, but I've seen experienced chemists fight uphill collection because they didn't account for adapter orientation relative to their condenser.

The angle works with typical condenser configurations, whether you're using Liebig, Graham, or Allihn designs. When purifying high-boiling solvents like DMSO or DMF, that 105° curve prevents vapor from rushing back toward your flask during temperature fluctuations. Analytical labs doing boiling point determinations rely on this consistency—erratic vapor behavior throws off measurements.

Roughly 150mm length provides adequate spacing without excessive dead volume. Shorter adapters create heat transfer problems between flask and condenser, while longer versions just trap more product in the glassware.

Running vacuum work? Consider the Adapter vacuum, 105° socket 14/23, cone 14/23 instead—it includes a sidearm for connecting your vacuum line directly at the adapter rather than downstream. Saves you from adding another joint to your setup, which means fewer potential leak points.

For rotary evaporation setups like the Rotary evaporator R-3001, you'll want the Adapter Bent 105° socket14/23,cone14/23 which provides both socket and cone terminations for more flexible configuration options. Labs doing continuous distillations prefer that version because you can orient it multiple ways depending on receiving flask position.

Chemical resistance is essentially universal—borosilicate glass withstands strong acids, bases, and organic solvents without degradation. You'll only run into problems with hydrofluoric acid or hot concentrated alkali solutions above 80°C. Cleaning is straightforward: base bath for organic residues, acid bath for metal contamination, then rinse with deionized water and acetone before drying in an oven at 120°C.
