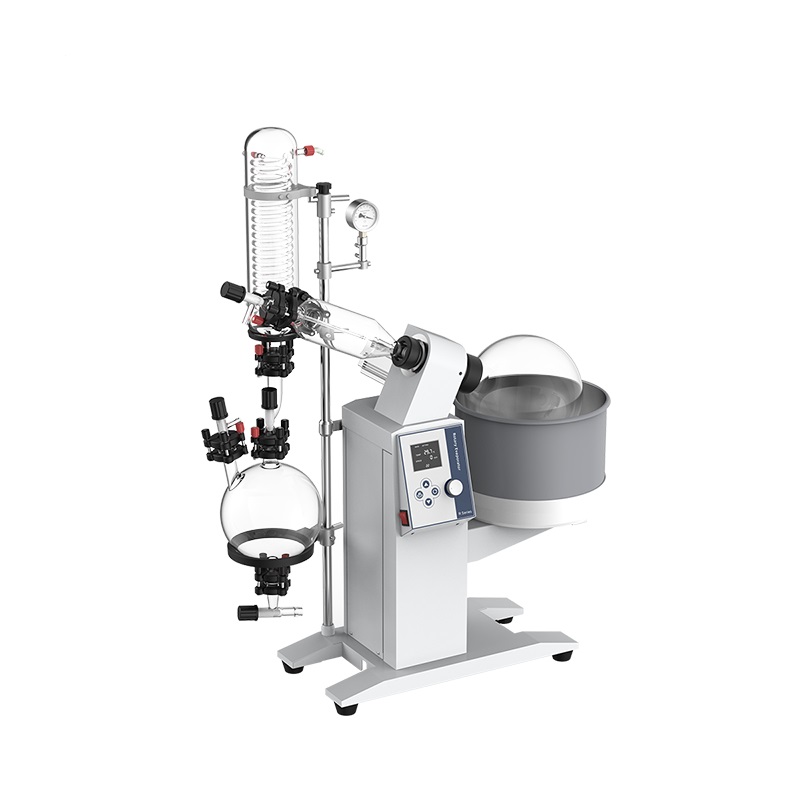

Rotary evaporator R-1005CE

Hands-On Solvent Recovery with the R-1005CE

I've spent enough hours at the bench to know that a solid rotary evaporator isn't about flashy features—it's about consistent performance when you're pulling solvents from reaction mixtures at 4pm on a Friday. The R-1005CE delivers exactly that: a 5-liter system with 20-140 rpm rotation control and an 1800W heating bath that doesn't make you wait around between samples.

Precision Evaporation Control in the R-1005CE Platform

Rotation speed matters more than most people realize. When you're working with temperature-sensitive natural products or pharmaceutical intermediates, that variable 20-140 rpm range lets you increase surface area without excessive agitation. I've found that keeping rotation around 60-80 rpm works beautifully for most ethyl acetate and dichloromethane evaporations, while pushing to 120+ rpm helps when you're dealing with higher-boiling solvents like DMF or DMSO.

The vacuum stability specification—pressure increase under 2 kPa/h—tells you the seals actually work. Pair the system with proper glassware connections using an Adapter vacuum, 105° socket 14/23, cone 14/23 or an Adapter Bent 105° socket14/23,cone14/23 for angled setups, and you'll maintain that vacuum integrity throughout extended runs.

Gentle Processing for Temperature-Sensitive Compounds

Here's where the R-1005CE earns its keep in synthesis labs:

• Pharmaceutical workups: Process API intermediates without thermal degradation—I keep bath temps around 40-50°C for most applications
• Natural product extraction: Concentrate plant extracts in methanol or ethanol while preserving bioactive compounds
• Environmental analysis: Pre-concentrate water samples extracted into organic solvents before GC-MS analysis
• Polymer chemistry: Remove reaction solvents from monomer solutions without initiating premature polymerization

The digital temperature display means you're not guessing—critical when you're working with compounds that degrade above specific thresholds. For sensitive materials, consider using an Adapter Distillation 105°, socket 14/23 to create custom distillation pathways that minimize heat exposure.

Practical Bench-Scale Design for Daily Laboratory Use

At 840x520x1140mm and 35kg, you can actually move this thing without calling for backup. I've positioned it next to fume hoods, on mobile carts, and in tight corner spaces where larger units like the Rotary evaporator R-1010CE or Rotary evaporator R-1020CE simply won't fit.

The 5-liter flask capacity hits that practical sweet spot—large enough for multi-gram synthesis workups but manageable enough for daily operation. When you're running back-to-back concentrations from column chromatography fractions, you don't want to wrestle with a 10-liter flask every time. The flange opening (φ50mm) accommodates standard glassware, and if you need specialized connections, an adapter vacuum/inert, gas, 90 degrees, cone 29/32 gives you flexibility for inert atmosphere transfers.

Cooling performance makes or breaks solvent recovery rates. I strongly recommend pairing the R-1005CE with either the Recirculating chiller DLSB-5/20A for intermittent use or the Recirculation cooler DL30-300CE if you're running continuous operations. Better condenser cooling means faster evaporation cycles and higher solvent purity in your receiving flask.

User-Friendly Controls That Prioritize Function Over Complexity

Digital displays for rotation speed and bath temperature eliminate guesswork. You set 80 rpm, you get 80 rpm—no analog dial interpretation required. The control panel layout makes sense: rotation adjustment on the left, temperature controls on the right, lift mechanism in the center where your hand naturally reaches.

Safety features work quietly in the background:

• Overheat protection: Automatically cuts heating if bath temperature exceeds setpoint by 10°C
• Automatic shut-off: Engages when vacuum loss is detected or rotation stops unexpectedly
• CE certification: Meets European safety standards for electrical and mechanical design

For routine operation, use an adapter cone 14/23, free tube length 100mm to create proper spacing between your evaporation flask and heating bath—prevents bumping and gives you visual confirmation of boiling behavior. When you're concentrating crude reaction mixtures with particulates, that extra tube length lets you monitor for foam formation before it reaches your condenser.

Compared to the Rotary evaporator R-1050CE, which offers greater capacity but demands substantially more bench space, the R-1005CE fits the workflow of most organic, medicinal, and analytical chemistry labs. You'll process 80-90% of your samples efficiently without the footprint penalty.
