Rotary evaporator R-3001
- 1~110V-240V/50Hz
- Evaporating flask: 500ml*1+1000ml*1
- Receiving flask: 1000ml*1
- Bath ware: Environment ~ 95℃
- Rotation speed: 10 ~ 280 rpm
- Motor Power: 40W
- Electric Lifting Distance: 0 ~ 150mm
- Water Bath Material: SUS304
- Different Sizes of Evaporating Flasks: 500ml, 1000ml.
- Easy Lifting by Pressing UP/DOWN Button.
- The heating coil is hidden under the water bath, which ensures safer operation and a long service life.
- Safety: Dry running, overcurrent and short circuit protection.
Ideal for use in small and medium-sized experiments. Suitable for university laboratory.
Equipment for purification distillation test rotates and forms thin film in conditions negative pressure by heating, effectively evaporates, a then condenses and collects solvent for Cleanup and Splitting.
Brief Introduction :
Have a question about this product?
- Link
- Price
- Availability
- Quantity
- R-3001
- 2,472.00€
- 8
-
-
Overview

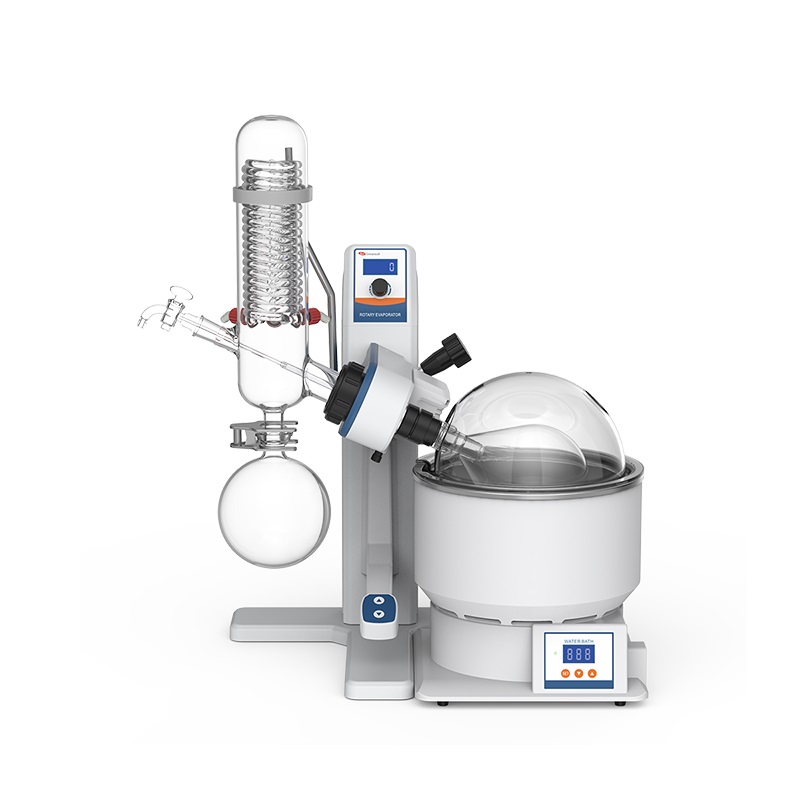

The Rotary evaporator R-3001 is a benchtop distillation instrument designed for the efficient and gentle removal of solvents from samples by evaporation under reduced pressure. As the evaporating flask rotates within a heated water bath, the sample is spread into a thin film, which increases the available surface area and allows the solvent to evaporate, condense, and collect in the receiving flask. This makes the unit well suited for purification, distillation, concentration, and solvent recovery tasks in chemical and analytical laboratories.
The R-3001 is intended for small and medium-sized experiments and is a practical choice for university teaching and research laboratories. Its design supports applications across biological, pharmaceutical, chemical, and food-related work where controlled, low-temperature evaporation is required.
Specifications
- Power supply: 110V–240V / 50Hz
- Evaporating flask: 500 ml ×1 + 1000 ml ×1
- Receiving flask: 1000 ml ×1
- Bath temperature range: Ambient ~ 95 ℃
- Rotation speed: 10 ~ 280 rpm
- Motor power: 40 W
- Electric lifting distance: 0 ~ 150 mm
- Water bath material: SUS304 stainless steel
- Available evaporating flask sizes: 500 ml, 1000 ml
Design and Safety Features

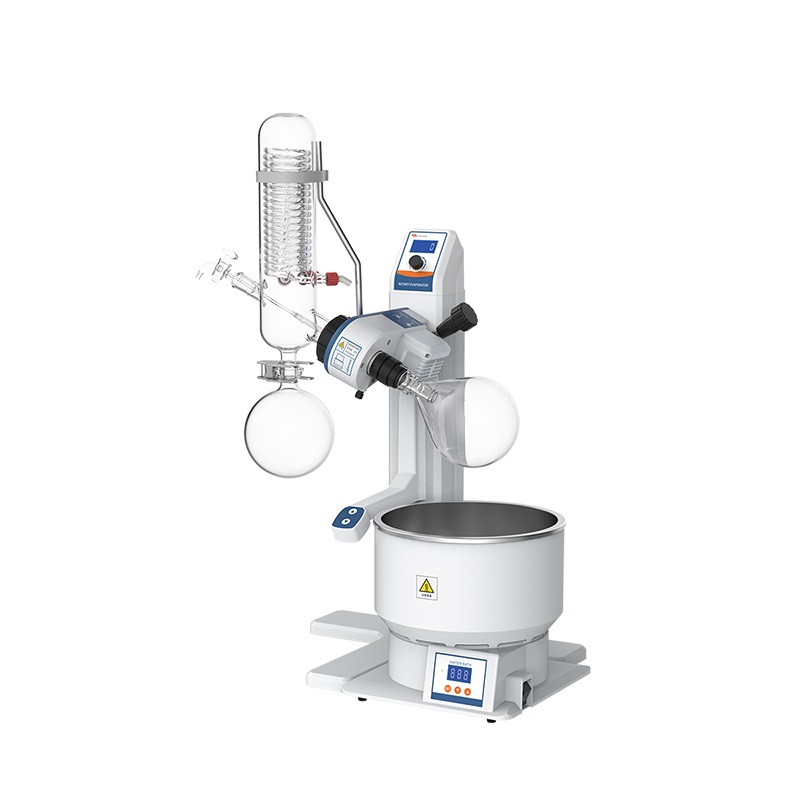

The water bath is constructed from SUS304 stainless steel and operates from ambient temperature up to 95 ℃. The heating coil is hidden under the water bath, a construction that supports safer operation and a longer service life. Vertical positioning of the glassware is handled by an electric lift with a travel of 0 ~ 150 mm, adjusted simply by pressing the UP/DOWN button, which allows the operator to raise the flask out of the bath quickly when distillation is complete.
The motor delivers continuous rotation across a range of 10 ~ 280 rpm, giving control over film formation and evaporation behaviour for different solvents and sample volumes. Built-in protection includes dry-running protection, overcurrent protection, and short-circuit protection to safeguard the instrument during routine use.
Applications and Related Equipment
With its combination of a heated bath, variable rotation, and electric lift, the R-3001 effectively evaporates solvent, which then condenses and is collected in the receiving flask for clean-up and separation procedures. Laboratories that require a larger or differently configured unit may also consider this Rotary Evaporator as an alternative model. For workflows focused on recovering and reusing distilled solvent, the related Solvent Recovery system offers another option within the same product family.

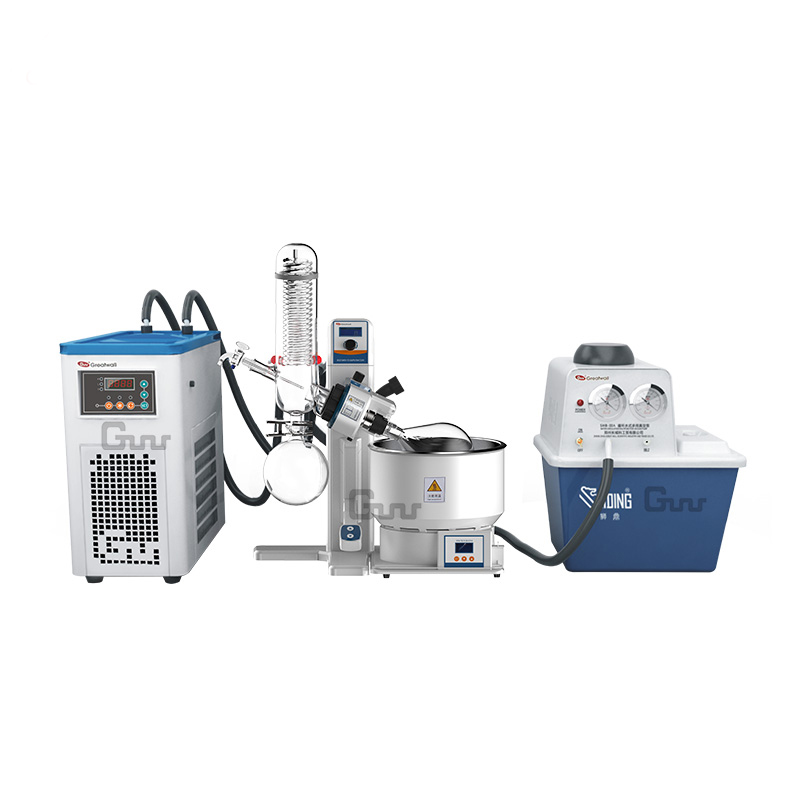

Because the R-3001 operates under negative pressure, it is typically paired with appropriate glassware and connections; a suitable vacuum adapter helps complete the assembly and maintain a reliable seal during distillation. Together these components form a flexible setup for evaporation, concentration, and solvent collection in everyday laboratory practice.
