Adapter Bent 105° socket14/23,cone14/23

Product Overview

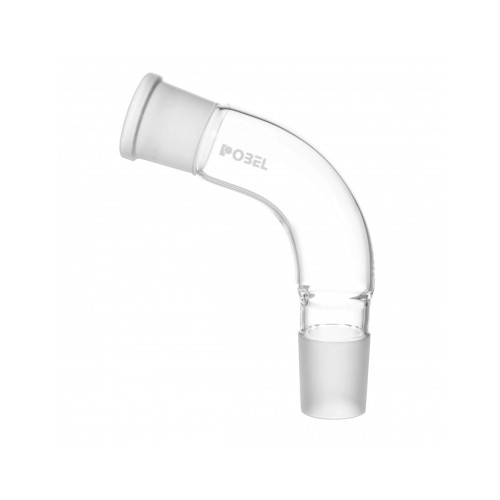

The Adapter Bent 105° (socket 14/23, cone 14/23) is a precision laboratory glass connector designed to redirect the flow of vapours or liquids within a glassware assembly. Manufactured from borosilicate glass, this adapter features a single bend of 105°, allowing flasks, condensers, and receiving vessels to be positioned at an angle relative to one another. Its matching socket and cone ground-glass joints, both sized 14/23, ensure a secure, leak-resistant fit when combined with other components carrying the same standard taper.

Technical Specifications

• Angle of Bend: 105°
• Socket Size: 14/23
• Cone Size: 14/23
• Material: Borosilicate Glass
• Maximum Temperature: 250 °C
• Length: 120 mm
• Outer Diameter: 14 mm

Materials and Construction

Borosilicate glass is the standard choice for laboratory glassware because of its strong resistance to thermal shock and chemical attack. This adapter withstands operating temperatures up to 250 °C, making it suitable for a wide range of heated and ambient procedures. The ground-glass cone and socket joints provide a reliable mechanical and vapour-tight connection, while the 120 mm length and 14 mm outer diameter give the component a compact profile that fits readily into most bench-scale setups. The 105° bend offsets the connected glassware, which can help with clearance and orientation in crowded apparatus arrangements.

Typical Applications

This bent adapter is commonly used in distillation, reflux, and vapour-transfer assemblies where the geometry of the setup requires a change of direction between joints. With identical 14/23 socket and cone fittings, it links seamlessly to flasks, columns, and receivers of the same taper. It is frequently paired with a condenser to route condensed vapours toward a collection vessel, and it can be combined with a vacuum variant such as the socket 14/23, cone 14/23 adapter when an evacuation port is required for reduced-pressure operations.

Compatibility and Availability

Because the socket and cone share the 14/23 standard taper, this adapter integrates with the broader family of borosilicate glassware components built to the same dimension, simplifying assembly and reducing the need for additional reducing connectors. Its straightforward design and modest footprint make it a practical building block for both routine and specialised glassware configurations.

This item is currently marked as available soon. Buyers interested in current stock or pricing options should review the clearance listing for this adapter to check for any available units. Confirm joint sizes and intended temperature range against your existing equipment before ordering to ensure a correct fit within your apparatus.
