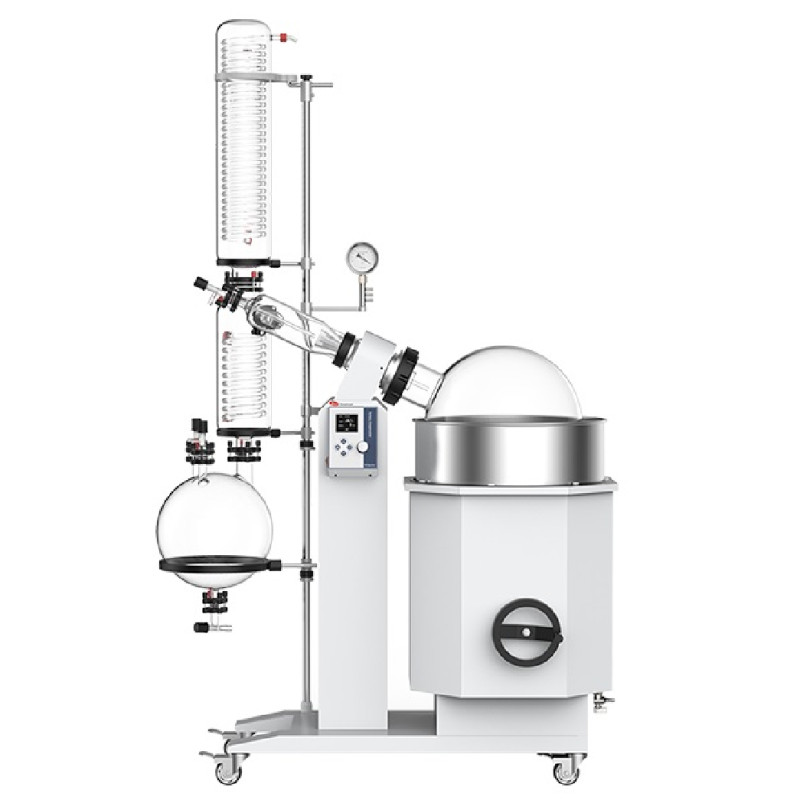

Rotary evaporator R-1050CE
- 3 ~ 380V/50Hz
- Evaporating flask: 50L*1
- Original flask: 20L*1
- Ware bath: ambient ~ 99℃
- Rotation speed: 20 ~ 110 rpm
- Motor power: 250W
- Motorized lifter: 0~180mm
- Water bath material:SUS304
- Electric and manual lift
Distillation dough purification equipment rotates and forms a thin film under negative pressure condition by heating, effectively evaporates and then condenses and collects the solvent for purification and separation.
Brief introduction:
1. Rotary evaporator (or rotary evaporator) is a device used in chemical laboratories to efficiently and gently remove solvents from samples by evaporation.
2. Large capacity, large diameter rotary evaporator flask, evaporation area, vacuum water bath with rotating heating edge, diffusion solution evaporation efficiency can be used for biological, pharmaceutical, chemical, food and other production fields.
Have a question about this product?
- Link
- Price
- Availability
- Quantity
- R-1050CE
- 6,811.00€
- 4
-
-
Overview
The Rotary evaporator R-1050CE is a large-capacity distillation and solvent-removal system designed for chemical, pharmaceutical, biological, and food laboratory and small-scale production environments. By rotating a heated flask under negative-pressure conditions, the sample forms a thin film that increases the effective evaporation area, allowing solvents to evaporate gently and then condense for clean collection. This makes the unit suitable for the purification and separation of a wide range of solvent-bearing samples.
At the core of the system is a 50L evaporating flask paired with a 20L original (receiving) flask, giving the R-1050CE the throughput needed for processing larger sample volumes. The water bath is constructed from SUS304 stainless steel and heats from ambient temperature up to 99℃, providing a controlled, gentle heat source for temperature-sensitive distillation work.
Key Specifications
- Power supply: 3 ~ 380V / 50Hz
- Evaporating flask: 50L × 1
- Original (receiving) flask: 20L × 1
- Water bath range: ambient ~ 99℃
- Rotation speed: 20 ~ 110 rpm
- Motor power: 250W
- Motorized lifter travel: 0 ~ 180mm
- Water bath material: SUS304 stainless steel
- Lift type: electric and manual lift
Design and Operation
The 250W motor drives flask rotation across an adjustable range of 20 ~ 110 rpm, letting operators match the rotation speed to sample viscosity and the desired evaporation behavior. A continuously variable speed range supports both gentle handling of delicate samples and more vigorous mixing where appropriate. The combination of rotation and reduced pressure promotes efficient, uniform evaporation while keeping bath temperatures moderate.
To ease setup and flask handling, the R-1050CE offers both electric and manual lift functions, with a motorized lifter providing 0 ~ 180mm of vertical travel. This allows the evaporating flask to be raised out of or lowered into the water bath in a controlled manner, which is especially helpful when working with the larger 50L flask. The SUS304 bath material offers corrosion resistance suitable for routine laboratory use.
Applications and Related Equipment
With its large-diameter flask and expanded evaporation area, the R-1050CE is well suited to biological, pharmaceutical, chemical, and food applications where solvents need to be removed efficiently and then condensed for recovery. It can serve in both laboratory research and small production settings that require higher capacity than benchtop models.
For workflows that do not require the full 50L capacity, the smaller-scale Rotary evaporator R-1020CE may be a more appropriate fit. To maximize condensation efficiency and solvent recovery during operation, the R-1050CE can be paired with a dedicated cooling source such as the Recirculating chiller DL30-700CE, which supplies a steady flow of chilled fluid to the condenser. Together with an appropriate vacuum source, these components form a complete evaporation and recovery setup.
