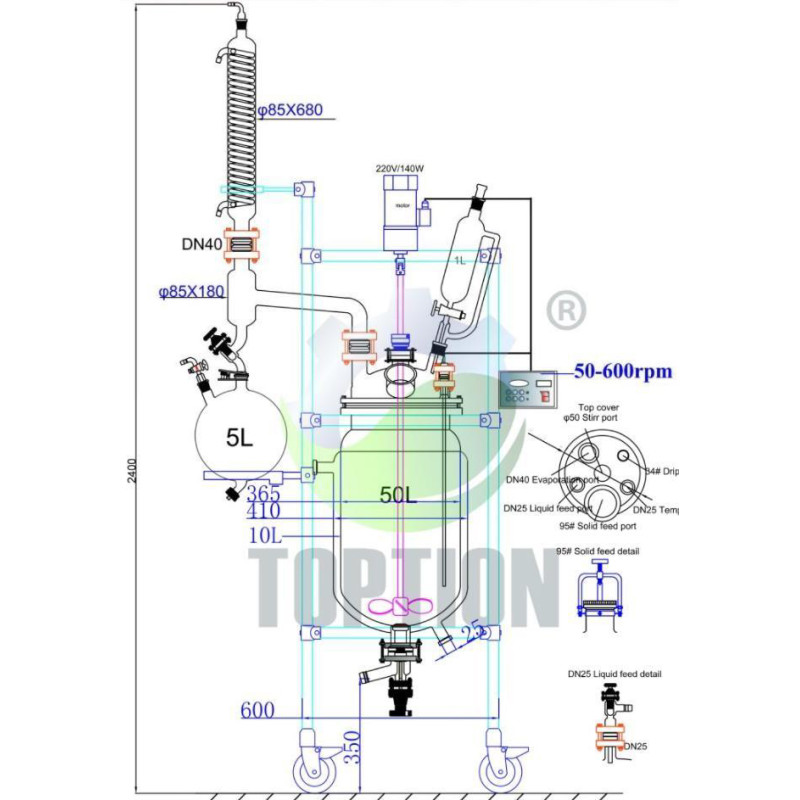

Glass Jacketed Reactor (Double Glass Reactor) TOPT-50L
Capacity : 50 liters
Material : Borosilicate glass 3.3
Liquid material inflow: 34# 1L
Condenser: 34#
Multifunctional Valve: DN25
Stirring Blades: ¢ 16mm double-layer three-blade paddle type
Reactor lid flang: 265
Outer diameter: 410
Tightness: 0.098 MPa.
Power: 140
Power supply : 220V; 60Hz
Reaction temperature: -120~280ºC
Double glass vacuum glass reactor, the inner layer is filled with reaction solvent to carry out the mixing reaction, various hot and cold substances can be added to the inner layer c (frozen liquid, hot water or hot oil) to carry out the reaction heating or cooling. This glass jacket reactor can be used for both high temperature experiments (maximum temperature 280°C) and low temperature experiments (minimum temperature -80°C) and vacuum tests.
Features of 50L Double Glass Reactor:
1. Use composite seal PTFE, it can maintain high vacuum degree. 2. Use efficient condenser to ensure high recovery rate. 3. The glass set adopts high-strength borosilicate glass GG17 with good chemical and physical properties 4. By adding hot oil into the glass interlayer interface, through the loop, the reaction can be obtained under the condition of high temperature; by adding cooling liquid, the reaction can be carried out under the condition of low temperature. 5. Tap water can be added into it to quickly remove the reaction heat. 6. The discharged material has a flange hole and valve PTFE, without dead angle inside the container, can be dismantled to facilitate the discharge of solid materials. 7. Digital mixing motor, frequency conversion control, matched with torque increasing gear reducer 8. Reasonable Structure and selected materials. Mechanical components use stainless steel and aluminum alloys, glass parts use high borosilicate glass with high heat resistance and good chemical properties. Electrical components: main components use original imported devices
Have a question about this product?
- Link
- Price
- Availability
- Quantity
- TOPT-50L
- 4,299.00€
- 1
-
-
Glass Jacketed Reactor (Double Glass Reactor) TOPT-50L
The TOPT-50L is a double-walled glass jacketed reactor designed for controlled mixing reactions across a wide temperature range. Its inner layer holds the reaction solvent, while the surrounding jacket accepts hot or cold media — frozen liquid, hot water, or hot oil — circulated through the interlayer to heat or cool the contents. This dual-layer construction makes the reactor suitable for high-temperature work, low-temperature work, and vacuum testing in a single vessel.
With a 50-liter capacity, the unit is built from borosilicate glass 3.3, a high-strength glass offering good chemical and physical resistance. The reactor supports a working temperature range of -120 to 280°C, allowing both high-temperature reactions (maximum 280°C) and low-temperature reactions to be performed in the same setup. A composite PTFE seal helps maintain a high vacuum degree, with a stated tightness of 0.098 MPa.

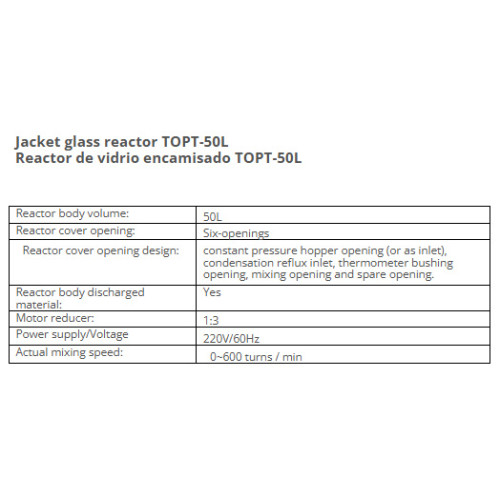

Specifications
- Capacity: 50 liters
- Material: Borosilicate glass 3.3
- Liquid material inflow: 34# 1L
- Condenser: 34#
- Multifunctional valve: DN25
- Stirring blades: ¢16mm double-layer three-blade paddle type
- Reactor lid flange: 265
- Outer diameter: 410
- Tightness: 0.098 MPa
- Power: 140
- Power supply: 220V; 60Hz
- Reaction temperature: -120 to 280°C
Features and Design
The reactor is fitted with an efficient condenser to support a high recovery rate during distillation and reflux operations. Mixing is driven by a digital motor with frequency conversion control, matched with a torque-increasing gear reducer for stable agitation. The discharge port uses a PTFE flange-hole valve with no dead angle inside the container, and it can be dismantled to facilitate the removal of solid materials.
Material selection reflects the demands of laboratory chemistry: mechanical components use stainless steel and aluminum alloys, while the glass parts use high borosilicate glass with high heat resistance and good chemical properties. The main electrical components use imported devices. Adding tap water to the jacket allows reaction heat to be removed quickly, while hot oil circulated through the interlayer supports elevated-temperature reactions and cooling liquid enables low-temperature operation.
Applications and Related Models
This 50L double glass reactor is suited to synthesis, extraction, distillation, and other process chemistry where controlled temperature and vacuum are required at scale. For laboratories needing a smaller benchtop footprint, the Glass Jacketed Reactor (Double Glass Reactor) TOPT-10L offers the same jacketed design in a reduced capacity. Operations that fall between small-scale and full pilot volumes may prefer the intermediate Glass Jacketed Reactor (Double Glass Reactor) TOPT-20L, allowing methods to be scaled consistently across the series. All three share comparable construction and operating principles, making the transition between vessel sizes straightforward.
