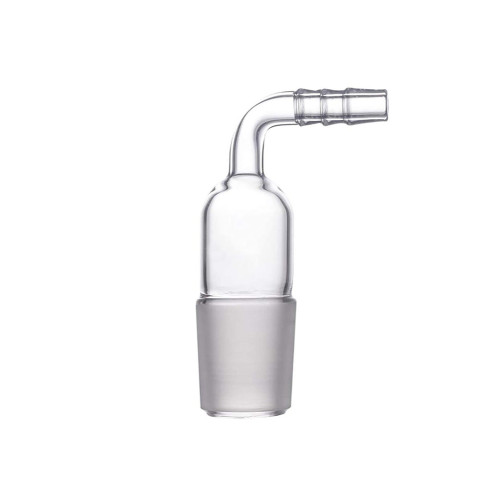

adapter vacuum/inert, gas, 90 degrees, cone 29/32

Dual-Purpose Gas Management with 90° Schlenk Adapters

Right-anglevacuum adapters solve the clearance problem that kills productivity in crowded Schlenk setups. When you're running air-sensitive reactions with heating mantles and stirrers clustered around a manifold, straight inline adapters force tubing to compete for vertical space. The 90-degree bend routes your vacuum or inert gas line parallel to the bench, keeping hoses away from hot surfaces and reducing the tangled mess that leads to disconnections during critical transfer steps.

29/32 Ground Joint Specifications for Larger Scale Reactions

The 29/32 taper gives you 75mm² of contact area when fully seated—that's roughly 30mm of insertion depth creating a grease seal that holds under repeated vacuum-backfill cycles. Why this matters: Larger bore diameter supports flow rates exceeding 15 L/min during argon purges, essential when you need rapid atmosphere exchange in 500mL to 2L flasks.

Compare this to the Adapter vacuum, 105° socket 14/23, cone 14/23 used for microscale work—those smaller joints restrict flow to 4-6 L/min and work best with 25-100mL vessels. If you're scaling down, the Adapter Bent 105° socket14/23,cone14/23 offers similar angular clearance for reactions under 250mL. The Adapter Distillation 105°, socket 14/23, adapter cone 14/23, free tube length 100mm provides extended reach but won't handle the vacuum demands of preparative-scale Schlenk lines.

Switching Between Vacuum and Inert Atmosphere Protocols

• Vacuum mode: Connect to trap-protected pump lines for solvent degassing at 0.1-1.0 torr—the hose barb accepts 6-10mm ID tubing with secure friction fit
• Inert gas mode: Direct nitrogen or argon flow through the same connection for backfilling or maintaining positive pressure during cannula transfers
• Manifold integration: Mates directly with standard Schlenk manifold ports, unlike specialized equipment such as the Rotary evaporator R-3001 which uses dedicated vapor ducts

Borosilicate Glass Durability Under Thermal Cycling

Type 3.3 borosilicate handles -196°C (liquid nitrogen baths) to +500°C without cracking. Real-world application: You can freeze-pump-thaw degas solvents in attached flasks, then immediately heat the reaction to reflux without thermal shock failures. Vacuum rating reaches 10⁻³ torr with proper high-vacuum grease application—reapply silicone compound every 15-20 cycles to maintain seal integrity as the grease migrates under pressure differentials.
